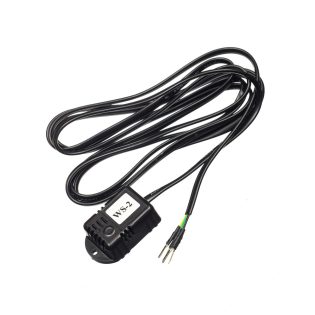

Humidity sensor WS-2

A relative humidity sensor for measuring relative humidity in % and a built-in temperature sensor. For NetPing power distribution units.

Plastic cover with slots.
Sensor is constructed based on the chip HIH6031-021.
Humidity measuring range is 0% … 100%.
Operating temperature range is 40°C … +100°C.
Humidity measuring accuracy is ±4,5%.
Temperature measuring accuracy is ±1°C.
Nondetachable wire 2 meters long.

Description

Name	Status	Price, $
Humidity sensor WS-2	ACTIVE	51

General usage conditions - for industrial and commercial usage in conditions of high humidity (0-95%, non-condensing). The device is not intended for domestic use.

A humidity sensor WS-2 is designed to measure air humidity indoors. It is manufactured as a board, installed into a plastic cover.

An air relative humidity sensor is connected to the following NetPing 2/PWR-220 power distribution units (PDUs). The information about connecting a digital humidity sensor is in the document “User Guide” for NetPing PDU, to which they are connected. The information about a sensor configuration is in the document “Firmware Description” for NetPing power distribution unit, to which you are connecting a humidity sensor.

It is possible to plug only one humidity sensor WS-2 to one NetPing PDU.

A loop of a sensor consists of 4 wires that transmit a digital information about a humidity and a temperature. The loop is connected inseparably to a sensor and is 2 meters long. If necessary, it is possible to make a loop sensor longer up to 10 meters using RC-4 sensor loop extender plugged one into another.

A humidity sensor is constructed based on the chip HIH6031-021.

See more detailed information about a relative air humidity in the article: Relative humidity.

Specification

Solution
The device is intended for indoor use only	indoor only
Formfactor and enclosure	plastic case with slots
The sensor comes with inseparable cable	2 meter long
Important	It is possible to plug only one humidity sensor WS-2 to one NetPing PDU.
A loop of a sensor consists of 4 wires that transmit a digital information about a humidity and a temperature.	It is possible to make a loop sensor longer up to 10 meters using RC-4 sensor loop extender plugged one into another.
Functionalities
Main functionalities
1-wire humidity sensors have unique internal numbers, which allow a device to identify each sensor.	The sensor is constructed based on the chip HIH6031-021.
Humidity measuring range is	0% … 100%
Operating temperature range is	-40°С … +100°C
Humidity measuring accuracy is	±4,5%
Extra functionalities
Temperature measuring accuracy is	±1°C
Hardware specification
Connectors
The sensor is connected with the help of	4 wires
Power supply and parameters
Power supply of a sensor	2.3 Vdc to 5.5 Vdc
Interface, socket	output i2C, no socket, four wires
Dimensions and logistics parameters
Water proof case	Yes
Device dimensions (L x W x H)	35 х 23 х 15 mm
Package box dimensions (L x W x H)	Bag ZIP (Number 6), 120×170 mm
Net weight	40 g
Unit packaged weight (transportation weight)	42 g
Device packing containment	sensor, zip package
Operating conditions
Ambient air temperature for operation	-40°С … +100°С
Relative humidity	5…95 % (relative humidity has to be not more than 95%, non-condensing)
Operating atmospheric pressure range	84,0 … 106,7 kPa
Storage conditions
Ambient air temperature for storage	-40°С … +85°С
Storage Relative Humidity	5…95 %
Device reliability
Mean time between failures	35 000 h
Device life	At least 3 years
Limited manufacturer’s warranty	3 years from production date
Lifetime technical support	Yes

Documentation and files

Manuals

Technical specifications HIH6031-021

1 file(s) 1.62 MB

Download

How to Buy?

You can purchase all equipment offered at our website for USD directly from us NetPing east Co Ltd. company or from our official partners. All prices indicated on our website are current ones.

To purchase NetPing devices, email please your request to sales@netpingdevice.com. In the email, indicate please the next:

Name and number of models of devices that you want to purchase. Do not forget to indicate sensors and accessories that are necessary for you.
Company name and a name of the recipient of the parcel with equipment.
Complete mailing address for equipment delivery.
Contacts (e-mail and a phone number).

Afterwards, a sales manager will prepare and send you an invoice in USD to pay the order (the details of our bank account and PayPal account are specified on the invoice). The invoice is valid for 10 days, and if you do not pay it within the specified time frame, the invoice will be canceled. To renew the order, you will need to send a repeat request to a sales manager.

Equipment can be sold for 100% prepayment only!

We make discounts to retail customers. Provided by lot (lot - one time buying/shipment):

Lot total amount > 600 USD → 5% discount.
Lot total amount > 1500 USD → 10% discount.
Lot total amount > 3000 USD → special discount.

We deliver equipment to any country of the world for free. Free delivery of devices without batteries is provided by EMS company. Free delivery of devices with batteries is provided by DHL company.

Customers from Russian Federation are welcome to visit our Russian website www.netping.ru and choose there a more convenient method to purchase our goods.
